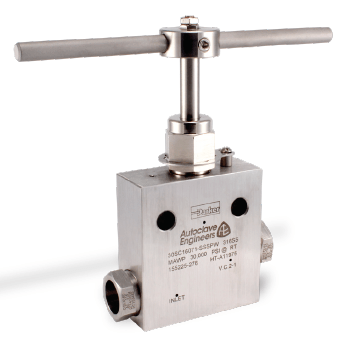

Autoclave 30SC16072 Needle Valve
30SC/43SC Series: High Pressure Cone & Thread
Pressures to 43,000 psi / For use with 1″ OD High Pressure Tubing with 0.438″ ID
Principle of Operation:
Since 1945, Parker Autoclave Engineers has designed and built premium quality valves, fittings and tubing. Our valves are designed specifically for use with High or Ultra High Pressure Fittings and Tubing for the most efficient flow path possible using Cone & Thread style connections. Designed in accordance with ASME 31.3 Chapter IX High Pressure Piping standards.
High Pressure Valve Features:
- Cryogenic or High Temperature Rated -423° to 1200°F with options
- Manufactured with UNS S31600 cold worked 316 stainless steel made to PAE proprietary standard
- Non-Rotating stem prevents stem/seat galling
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance
- For dependable stem and body sealing 30SC & 43SC valves are furnished with PTFE or PTFE glass packing
- Choice of Vee (Shutoff) or Regulating (Flow Control) stem tips available with optional N-Dura or Stellite material options for severe service
Autoclave 30SC16072 Needle Valve Technical Data:
- Description: 1″ 2-Way Angle High Pressure Needle Valve
- Pressure Rating: 30,000 psi
- Connection Size: 1″ OD (F1000C43 connections)
- Stem / Seat Type: Non-Rotating Vee Stem (on-off service)
- Body Pattern: 2-Way Angle
- Orifice Diameter: 0.438″
- Cv: 2.6
- Temperature: standard Parker Autoclave Engineers valves with PTFE packing may be operated from 0°F to 450°F
- Repair Kit: R30SC1607
Valve Options (add the following suffixes to the valve part number):
- “B“: Cryogenic trim materials and PTFE packing required when below 0°F to -100°F
- “LT“: Extended stuffing box valve with PTFE packing and Cryogenic trim materials to -423°F
- “TG“: standard valve with PTFE-Glass packing for temperatures between -100°F to +600°F
- “GY“: Standard valve with Graphite Yarn packing 32°F to 800°F; included when when selecting HT option
- “HT“: Extended stuffing box valve with Graphite Yarn packing to 1200°F
- “K“: Anti-vibration collet/gland assembly (replaces standard gland)
Notes:
- Parker Autoclave Engineers valves are complemented by a complete line of high pressure fittings and tubing.
- Traceability is ensured by use of heat and purchase order codes etched on valve body that also include model number, MAWP rating, and material type references.
- All valves include connection collar and gland nut unless requested otherwise.
- Cv values shown are for 2-way straight valve pattern. For 2-way angle patterns, increase CV value 50%. (Based on water). Formula for converting Cv to volumetric flow can be found in Technical Information section of the catalog.
- Maximum Allowable Working Pressures decrease as temperatures increase – see pressure/temperature rating guide in Technical Information section of the catalog.
Please contact our Sales Department for assistance in selecting the right products for your application.
Product Catalog: Parker Autoclave High Pressure Needle Valves
