Circle Seal 2320A-2PM Check Valve
2300 Series: 0 to 10000 psig Check Valves
Features & Benefits:
- Designed for high pressure service
- Resilient o-ring
- Single-piece design
- Less susceptible to contamination damage
- Zero leak at normal back pressure
- Automatic compensation for wear
- Cushioned, quiet closing
Circle Seal 2320A-2PM Check Valve Technical Data:
- Description: 1/4″ FNPT x 1/4″ MNPT Check Valve, Aluminum/PTFE construction, rated up to 5000 psig
- Pressure Rating: 5000 psig
- Connections: 1/4″ FNPT inlet X 1/4″ MNPT outlet
- Body Material: Aluminum
- Seal Material: PTFE
- Cracking Pressure: 5 psig
- Cv: 0.76
- Internal Leakage: Zero @ 75 psig to proof
- Temperature: -100F to +250F
- Repair Kit: K/2320A-2PM

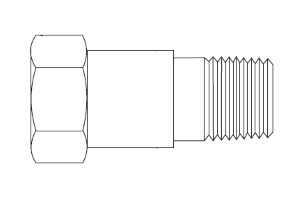

Dimensional Information:
- Dimension “B” (HEX ACROSS FLATS): 0.813″
- Dimension “C” (LENGTH): 1.67″
- Dimension “E” (THREAD DEPTH): 0.60″
- Dimension “F” (DIAMETER): 0.77″
- Dimension “G” (HEX WIDTH): 0.41″
Notes:
- Cracking pressure is defined at which flow is 5 cc/min except for 2320 series valves (with PTFE seals) for which flow is approximately 0.02 cfm.
- Standard cracking pressure is noted above. Special cracking pressures may be available upon special request, contact ***@*****************ol.com“>Sales for assistance (min cracking pressure available = 0.5 psi; max cracking pressure available = 30 psi).
- Proper filtration is recommended to prevent damage to sealing surfaces.
Please contact our Sales Department for assistance in selecting the right products for your application.
Product Catalog: Circle Seal Check Valves
