Haskel 17495 Oxygen Booster

Haskel 17495 Oxygen Gas Booster

NOTE: this is a version of the model AGD-30 Gas Booster modified for OXYGEN service.

Features & Benefits:

• Reliable, easy to maintain, compact and robust
• No heat, flame or spark risk
• Infinitely variable cycling speed and output
• Pneumatic driven units do not require electrical connections
• Easy to apply automatic controls
• No limit or adverse affect to continuous stop/start applications
• Seal systems designed for long working life
• No air line lubricator required
• Hydrocarbon free – separation between air and gas sections
• Built-in cooling (most models)
• Suitable for most gases
• Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat

Technical Data:

• Ratio: 30:1
• Min GAS supply pressure: 100 psi
• Max GAS supply pressure: 9000 psi
• Max rated GAS outlet pressure: 9000 psi
• Static outlet stall pressure formula: 30 Pa + Ps (Pa = air drive pressure; Ps = gas supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi

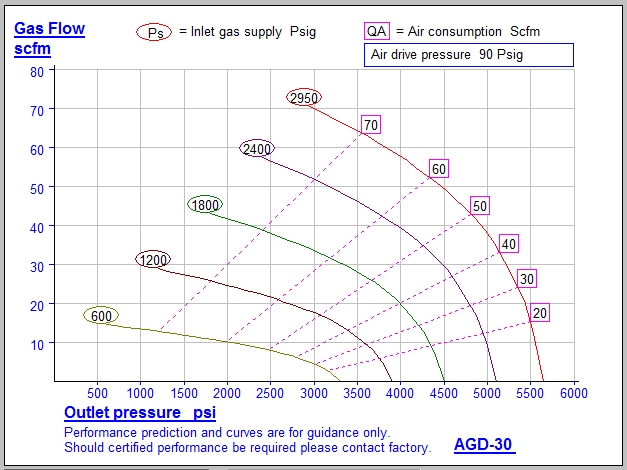

Sample Performance Characteristics:

• Boost 9.6 SCFM Gas from 850 psi to 2800 psi while using 40 SCFM Air @ 90 psig supply pressure
• Boost 19 SCFM Gas from 1550 psi to 3200 psi while using 40 SCFM Air @ 90 psig supply pressure
• Boost 25.5 SCFM Gas from 2250 psi to 4200 psi while using 40 SCFM Air @ 90 psig supply pressure
• Boost 35.6 SCFM Gas from 2850 psi to 4200 psi while using 40 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Unit weight: 38 lbs.
• Displacement / cycle: 6.2 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: Interchangeable 3/8″ SAE or 1/4″ HP (2 inlet & 2 outlet)
• AIR drive inlet port: 1/2″ FNPT

Haskel 17495 Oxygen Booster Repair kit information:

• Gas section seal kit P/N: 51548-30 (2 req’d)
• Air drive section seal kit P/N: 51545-1
• Air valve seal kit P/N: 17329
• Check valves seal kit P/N: 17677 (2 req’d)
• Distance piece kit P/N: N/A
• Optional tools: 28584 (Sleeve Removal Tool); 16675 (Wrench for Gas Booster check valve seats); 17246 (Wrench for Gas Booster piston nut)
• Notes: 51548-30 Gas Section kit includes piston seals; 17677 Check Valve Seal Kit includes check valve seals.

Optional Modifications:

• C-8: Air filter, regulator with gauge, and manual start/stop
• 17860: Electrical stroke counter
• 25721: Mechanical stroke counter
• 28881: External pilot modification
• 29376: Three-way cycling spool
• 29702: Single-stroke modification
• 50341: Low permeability seals for CO2 gas service
• 51050: Extreme service cycling modification
• 54827: Level II cleaning and certification of gas sections
• 56611-2: Vent purge with 15 psi relief
• 57875: Panel with regulator for mounting remote APS
• 59888: Cycle timer
• 80862: Viton air drive seals
• 82500: ATEX modification
• 86337: Extended life air drive seals

To add any modifications to this booster or for assistance in selecting the right booster for your application, please contact our Sales Department for assistance.

  Product Catalog: Gas Booster Catalog

  Installation Documents: SKIS-001  SKIS-002  SKIS-005  SKIS-014
