Haskel 26266 Oxygen Booster

Haskel 26266 Oxygen Gas Booster

NOTE: this is a version of the model AGD-4 Gas Booster modified for OXYGEN service.

Features & Benefits:

• Reliable, easy to maintain, compact and robust
• No heat, flame or spark risk
• Infinitely variable cycling speed and output
• Pneumatic driven units do not require electrical connections
• Easy to apply automatic controls
• No limit or adverse affect to continuous stop/start applications
• Seal systems designed for long working life
• No air line lubricator required
• Hydrocarbon free – separation between air and gas sections
• Built-in cooling (most models)
• Suitable for most gases
• Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat

Technical Data:

• Ratio: 4:1
• Min GAS supply pressure: ATM
• Max GAS supply pressure: 1250 psi
• Max rated GAS outlet pressure: 1250 psi
• Static outlet stall pressure formula: 4 Pa + Ps (Pa = air drive pressure; Ps = gas supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi

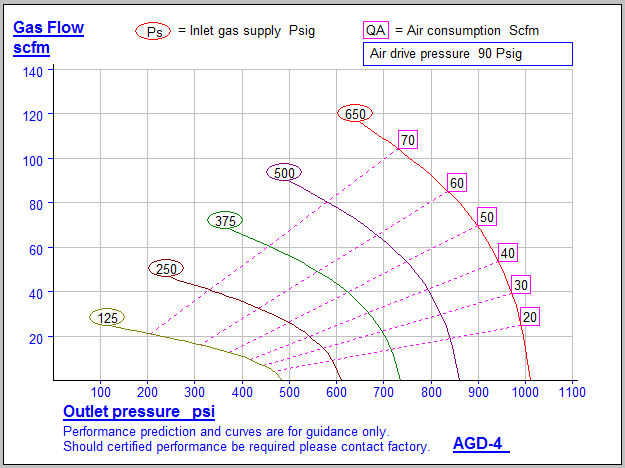

Sample Performance Characteristics:

• Boost 4.5 SCFM Gas from 50 psi to 200 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 16 SCFM Gas from 200 psi to 400 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 25.4 SCFM Gas from 350 psi to 600 psi while using 30 SCFM Air @ 90 psig supply pressure
• Boost 33 SCFM Gas from 500 psi to 800 psi while using 30 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Unit weight: 31 lbs.
• Displacement / cycle: 19.3 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: 3/8″ FNPT
• AIR drive inlet port: 1/2″ FNPT

Haskel 26266 Oxygen Booster Repair kit information:

• Gas section seal kit P/N: 29470
• Air drive section seal kit P/N: 16772
• Air valve seal kit P/N: 16771
• Check valves seal kit P/N: N/A
• Distance piece kit P/N: 17327
• Optional tools: 28584 (Sleeve Removal Tool); 56198 (Bullet Tool for installing piston rod thru rod seals)
• Notes: 29470 Gas Section kit includes piston & check valve seals.

Optional Modifications:

• C-8: Air filter, regulator with gauge, and manual start/stop
• 17860: Electrical stroke counter
• 25721: Mechanical stroke counter
• 28881: External pilot modification
• 29376: Three-way cycling spool
• 29702: Single-stroke modification
• 50341: Low permeability seals for CO2 gas service
• 51050: Extreme service cycling modification
• 54827: Level II cleaning and certification of gas sections
• 56611-2: Vent purge with 15 psi relief
• 57875: Panel with regulator for mounting remote APS
• 59888: Cycle timer
• 80862: Viton air drive seals
• 82500: ATEX modification
• 86337: Extended life air drive seals

To add any modifications to this booster or for assistance in selecting the right booster for your application, please contact our Sales Department for assistance.
