Haskel 27826 Plenum Chamber

Name: Haskel 27826 Plenum Chamber
SKU: HASK-27826
Availability: BackOrder

$2,462.75

The Haskel 27826 Plenum Chamber has a volume of 20 cu.in. and is rated for a working pressure of 5000 psig. It has 1/4″: FNPT connections.

Available on backorder

Request a Quote

SKU: HASK-27826 Categories: Haskel Accessories, Haskel Plenum Chambers, Haskel Products Tags: Accessories, Haskel Products, Plenum Chambers

Description

Haskel 27826 Plenum Chamber

Features & Benefits of Haskel Filter Plenum Chambers:

Small tubular all AISI 300-series stainless steel plenum chambers are used in air amplifier and gas booster assemblies to dampen pulsation between stages.

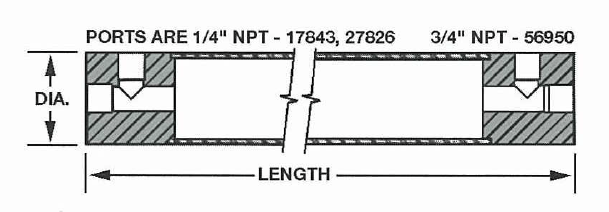

Haskel 27826 Plenum Chamber Specifications:

Volume: 20 cu.in.
Working pressure: 5000 psig
Proof pressure: 10,000 psig
Length: 23″
Diameter: 1-1/2″
Weight: 7 lbs.
Connections: 1/4″: FNPT

Product Catalog: High Pressure Valves and System Components Catalog
