Haskel 57175-60 Air Pilot Valve
Features & Benefits:
- Seated poppet or ball design for virtually zero leakage at high pressures with low viscosity fluids.
- They are NOT “bubble-tight” on gases.
- Normally-open models will generally hold a tighter seal on low viscosity liquids or gases because the seating force does not depend on the inlet pressure.
- Directly air-actuated for ideal system compatibility in wet or hazardous areas, or when used with air-driven pumps or boosters. Yet, if electronic or electrical control is preferred, they can be actuated with any of a wide selection of sub-miniature 3-way solenoid air valves available from many manufacturers.
- Employ the same basic area-ratio principle used in Haskel pumps, enabling high forces to be easily and directly controlled from low pressure plant main or instrument air.
- Although not normally considered for pressure control, all of the normally-open 2-way models can do double-duty in a circuit by also providing safety relief function simply by installing a small air regulator in the pilot line.
Haskel 57175-60 Air Pilot Valve Specifications:
- Type: 2-Way
- Normal Position: Open
- Nominal Area Ratio for Actuation: 1200:1
- Max Inlet Pressure (with 100 psig air pilot): 60,000 psig
- Cv (min.): 0.09
- “P”, “C” or “B” Port Size: 1/4″ SuperPressure
- “P”, “C” or “B” Port Max Pressure: 60,000 psig
- “T” or “A” Port Size: 1/4″ FNPT
- “T” or “A” Port Max Pressure: 3000 psig
- Materials of Construction (liquid section): Stainless Steel, Aluminum, Buna-N

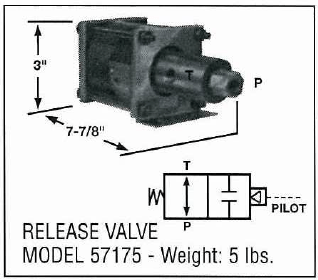

- Length: 7-7/8″
- Width: 3″
- Height: 3″
- Weight: 5 lbs.
- Air Pilot Port Size: 1/4″ FNPT
- Remarks: (1) Rated for plain water; (2) needle-type allowing flow in either direction
Product Catalog: High Pressure Valves and System Components Catalog
