Haskel 8AAD-2 Air Amplifier
Features & Benefits:
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Wide range of models, controls and options
- No air line lubrication required, eliminating oily exhaust
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems
- Control of maximum pressure by means of inexpensive air drive pressure regulators

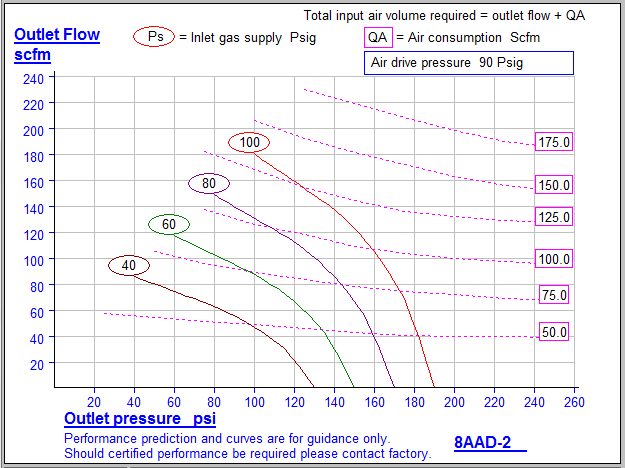

Technical Data:
- Air Drive Size: 8 in
- 1st Stage Ratio: 2:1
- 2nd Stage Ratio: N/A
- Min Gas supply pressure: 25 psi
- Max Gas supply pressure: 300 psi
- Max rated outlet pressure: 300 psi
- Static outlet stall pressure formula: Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
- Min AIR drive pressure: 40 psi
- Max AIR drive pressure: 130 psi
Physical Characteristics:
- Unit weight: 90 lbs.
- Displacement / cycle: 400 cu. in.
- Max cycles: 50/min.
- GAS inlet/outlet connections: 1″ FNPT (both)
- AIR drive inlet port: 3/4″ FNPT
Haskel 8AAD-2 Air Amplifier Repair kit information:
- Boosting section seal kit P/N: N/A
- Air drive section seal kit P/N: 58710
- Air valve seal kit P/N: 50881
- Optional tools: 28584 (Sleeve removal tool); 58748 (Bullet tool for installing piston rod thru rod seals)
- Notes: Only one kit required: each kit contains all of the necessary seals for the Air Drive & Gas Section or Air Drive & Air Valve. Units manufactured before Jun. 1999 use Air Valve seal kit P/N 51396-2.
Optional Modifications:
- C-18: Air filter, regulator with gauge, and manual start/stop
- 29125: External pilot modification
- 50341: Low permeability seals for CO2 gas service
- 82500: ATEX modification
To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.
Product Catalog: Air Amplifier Catalog
Installation Documents: SKIS-001 SKIS-002 SKIS-014
