Haskel 8SFD-40 Liquid Pump
Features & Benefits:
- Safe pneumatic operation – no heat, flame or spark risk
- Infinitely variable cycling speed
- Stall at pre-determined pressure to hold that pressure without consuming power
- Problem-free stop/start applications
- Easily automated – many modifications and control options
- Suitable for most liquids and liquefied gases
- Alternative gas drive options available, such as sour gas, natural gas, boil off gases, or nitrogen
- Robust, reliable, compact and easy to maintain proven design
- No need for air line lubrication – saves costs and prevents contamination
- Unbalanced cycling spool provides immediate response to pressure changes
- Can be manufactured to ATEX, CE and NACE
Technical Data:
- Power: 8HP
- Air Head: single
- Max Air Pressure: 125 psi
- Max cycles: 50/min.
- Nominal ratio (“dash number”): 40:1
- Actual area ratio: 43.5:1
- Max outlet pressure (continuous): 6000 psi
- Max outlet pressure (intermittent): 6000 psi
- Displacement / cycle: 8.90 cu.in.
- Max flow: 1691 cu.in. / min.

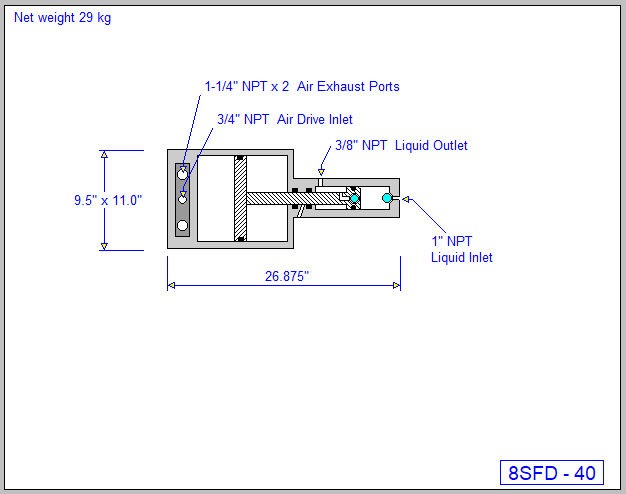

- Air inlet connection: 3/4″ FNPT
- Liquid inlet connection: 1″ FNPT
- Liquid outlet connection: 3/8″ FNPT
Typical Performance Characteristics (@100 PSIG air supply pressure):
- 1420 in3/min @ 2000 psig
- 200 in3/min @ 4000 psig
Materials of Construction:
- Pump section: All SS & Bronze
- Plunger: Hard chrome-plated 15-5PH SS
- Non-metallics: UHMWPE, Viton, PTFE, Ryton
Applications:
- Service Code 1: Petroleum-based oils, kerosene, ethylene glycol, water with 5% soluble oil.
- Service Code 2: Plain water, diesel fuel
- Service Code 3: N/R
- Service Code 4: N/R
- Service Code 5: N/R
- Service Code 6: N/R
Haskel 8SFD-40 Liquid Pump Repair kit information:
- Fluid section seal kit P/N: 56229
- Air drive seal kit P/N: 50168
- Air valve seal kit P/N: 50881-2
- Distance piece seal kit P/N: N/A
- Optional tools: 28584 (Sleeve removal tool)
- Notes: None.
Optional Modifications:
- 29125: External pilot modification.
- 54936: Exhaust/pilot vent combiner.
- 57944: Viton seals – air drive only.
- 59888: Cycle timer installed.
- 87410: Low air pressure control.
To add any modifications to this pump or for assistance in selecting the right pump for your application, please contact our Sales Department for assistance.
