Haskel AAD-30 Air Amplifier

Haskel AAD-30 Air Amplifier

Features & Benefits:

• Long seal life and easy maintenance
• No heat, flame or spark risk
• Wide range of models, controls and options
• No air line lubrication required, eliminating oily exhaust
• Infinitely variable outlet pressure and flow capability
• Wide range of standard and custom systems
• Control of maximum pressure by means of inexpensive air drive pressure regulators

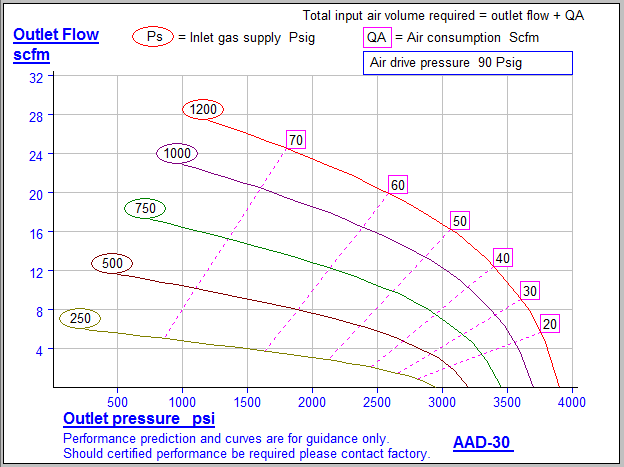

Technical Data:

• Air Drive Size: 5.75 in
• 1st Stage Ratio: 30:1
• 2nd Stage Ratio: N/A
• Min Gas supply pressure: 100 psi
• Max Gas supply pressure: 4500 psi
• Max rated outlet pressure: 4500 psi
• Static outlet stall pressure formula: 30 Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
• Min AIR drive pressure: 40 psi
• Max AIR drive pressure: 150 psi

Physical Characteristics:

• Unit weight: 34 lbs.
• Displacement / cycle: 6.2 cu. in.
• Max cycles: 80/min.
• GAS inlet/outlet connections: 1/4″ FNPT (2 of each)
• AIR drive inlet port: 1/2″ FNPT

Haskel AAD-30 Air Amplifier Repair kit information:

• Boosting section seal kit P/N: 17749 (2 req’d)
• Air drive section seal kit P/N: 16772
• Air valve seal kit P/N: 16771
• Optional tools: 28584 (Sleeve removal tool); 17246 (Wrench for piston nut)
• Notes: None.

Optional Modifications:

• C-5, 6 or 7: Air filter, regulator with gauge, and manual start/stop
• 28881: External pilot modification
• 29376: Three-way cycling spool
• 50341: Low permeability seals for CO2 gas service
• 51050: Extreme service cycling modification
• 82500: ATEX modification

To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.

  Product Catalog: Air Amplifier Catalog

  Installation Documents: SKIS-001  SKIS-002  SKIS-014
