Haskel AAT-15/30-16821 Air Amplifier
THIS PUMP INCLUDES THE OPTIONAL “16821” LOW AIR DRIVE PRESSURE MODIFICATION (ALLOWS USER TO REGULATE AIR DRIVE PRESSURE TO AS LOW AS 3 to 4 PSI).
Features & Benefits:
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Wide range of models, controls and options
- No air line lubrication required, eliminating oily exhaust
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems
- Control of maximum pressure by means of inexpensive air drive pressure regulators

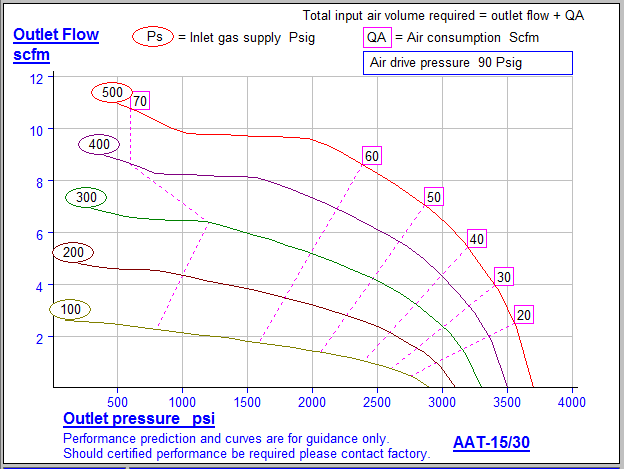

Technical Data:
- Air Drive Size: 5.75 in
- 1st Stage Ratio: 15:1
- 2nd Stage Ratio: 30:1
- Min Gas supply pressure: 50 psi
- Max Gas supply pressure: 1000 psi
- Max rated outlet pressure: 4500 psi
- Static outlet stall pressure formula: 30 Pa + 2 Ps (Pa = air drive pressure, Ps = GAS supply pressure)
- Min AIR drive pressure: 40 psi
- Max AIR drive pressure: 150 psi
Physical Characteristics:
- Unit weight: 34 lbs.
- Displacement / cycle: 6.2 cu. in.
- Max cycles: 80/min.
- GAS inlet/outlet connections: 1/4″ FNPT
- AIR drive inlet port: 1/2″ FNPT
Haskel AAT-15/30-16821 Air Amplifier Repair kit information:
- Boosting section seal kit P/N: 17550 & 17749
- Air drive section seal kit P/N: 16772
- Air valve seal kit P/N: 16771
- Optional tools: 28584 (Sleeve removal tool); 17246 (Wrench for piston nut)
- Notes: None.
Additional Optional Modifications:
- C-5, 6 or 7: Air filter, regulator with gauge, and manual start/stop
- 29376: Three-way cycling spool
- 50341: Low permeability seals for CO2 gas service
- 51050: Extreme service cycling modification
- 82500: ATEX modification
To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.
