Haskel AAT-30/50 Air Amplifier
Features & Benefits:
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Wide range of models, controls and options
- No air line lubrication required, eliminating oily exhaust
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems
- Control of maximum pressure by means of inexpensive air drive pressure regulators

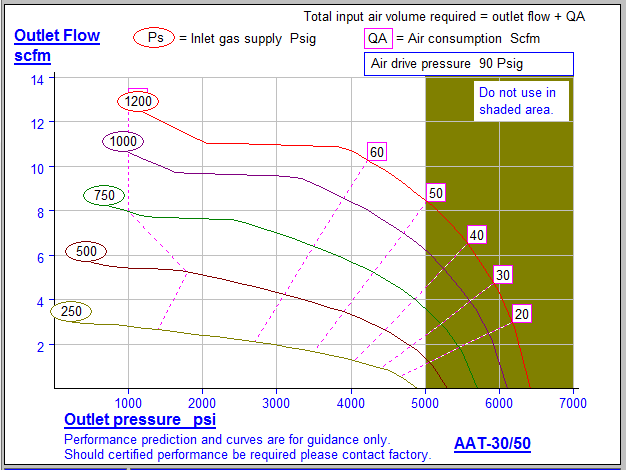

Technical Data:
- Air Drive Size: 5.75 in
- 1st Stage Ratio: 30:1
- 2nd Stage Ratio: 50:1
- Min Gas supply pressure: 50 psi
- Max Gas supply pressure: 3000 psi
- Max rated outlet pressure: 5000 psi
- Static outlet stall pressure formula: 50 Pa + 1.6 Ps (Pa = air drive pressure, Ps = GAS supply pressure)
- Min AIR drive pressure: 40 psi
- Max AIR drive pressure: 150 psi
Physical Characteristics:
- Unit weight: 34 lbs.
- Displacement / cycle: 3.1 cu. in.
- Max cycles: 80/min.
- GAS inlet/outlet connections: 1/4″ FNPT
- AIR drive inlet port: 1/2″ FNPT
Haskel AAT-30/50 Air Amplifier Repair kit information:
- Boosting section seal kit P/N: 17749 & 29219
- Air drive section seal kit P/N: 17838
- Air valve seal kit P/N: 16771
- Optional tools: 28584 (Sleeve removal tool); 17246 (Wrench for piston nut)
- Notes: None.
Optional Modifications:
- C-5, 6 or 7: Air filter, regulator with gauge, and manual start/stop
- 29376: Three-way cycling spool
- 50341: Low permeability seals for CO2 gas service
- 51050: Extreme service cycling modification
- 82500: ATEX modification
To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.
