Autoclave CF6-35 Cup Type Line Filter
High Pressure Cone & Thread, Pressures to 60,000 psi

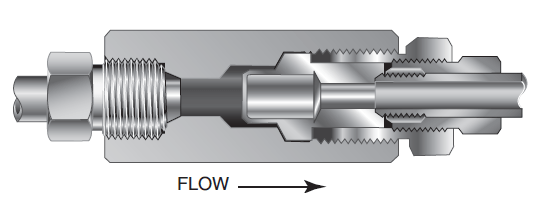

High-flow cup-type line filters are recommended in high pressure systems requiring both high flow rates and maximum filter surface area. Widely used in the industrial and chemical processing fields, the cup design offers as much as six times the effective filter area as compared to disc-type units. Filter elements can be quickly and easily replaced.
Autoclave CF6-35 Cup Type Line Filter Technical Data:
- Description: 3/8″ Medium Pressure Cup Type Line Filter
- Size: 3/8″
- Connection Type: F375C
- Pressure Rating: 60,000 psi
- Orifice Diameter: 0.125″
- Micron Size: 35
- Element Area: 1.29 in2
- Hex Size: 1.38″
- Length: 4.62″
- Materials: Body, Cover and Gland Nut all CW 316 Stainless Steel
- Element Material: 316L Stainless Steel, sintered cup type.
- Temperature Range:
- Oxidizing Fluids: +750F maximum
- Non-Oxidizing Fluids: -423F to +900F
- Spare Parts: filter elements are the only replaceable part.
- Element Part Number(s): 241A-2916
Notes:
- All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change. Limited special material options are available, consult FPCC for assistance.
- Parker Autoclave disc and cup type filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system.
- Special material filters may be supplied with four flats in place of standard hex.
- Pressure differential not to exceed 1000 psi in a flowing condition. Filter replacement is recommended if differential pressure exceeds 1000 psi.
- Larger micron size filter element is installed on the upstream (inlet) side.
Please contact our Sales Department for assistance in selecting the right products for your application.
