Haskel 51050-AAD-5 Air Amplifier
THIS AIR AMPLIFIER INCLUDES THE OPTIONAL “51050” EXTREME SERVICE CYCLING MODIFICATION.
Features & Benefits:
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Wide range of models, controls and options
- No air line lubrication required, eliminating oily exhaust
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems
- Control of maximum pressure by means of inexpensive air drive pressure regulators

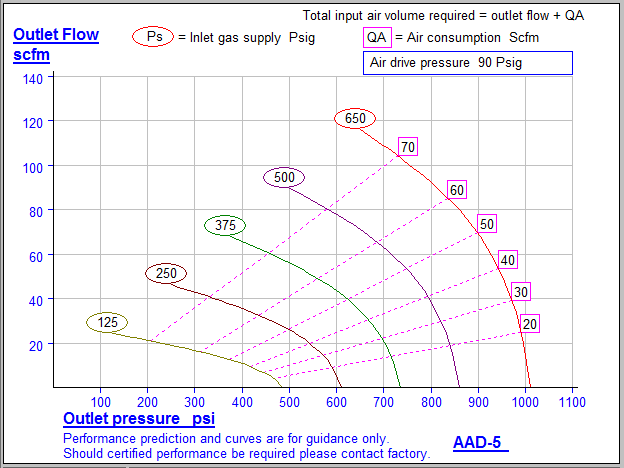

Technical Data:
- Air Drive Size: 5.75 in
- 1st Stage Ratio: 5:1
- 2nd Stage Ratio: N/A
- Min Gas supply pressure: 25 psi
- Max Gas supply pressure: 1250 psi
- Max rated outlet pressure: 1250 psi
- Static outlet stall pressure formula: 4 Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
- Min AIR drive pressure: 40 psi
- Max AIR drive pressure: 150 psi
Physical Characteristics:
- Unit weight: 25 lbs.
- Displacement / cycle: 19.3 cu. in.
- Max cycles: 80/min.
- GAS inlet/outlet connections: 1/2″ female compression
- AIR drive inlet port: 1/2″ FNPT
Haskel 51050-AAD-5 Air Amplifier Repair kit information:
- Boosting section seal kit P/N: 29013
- Air drive section seal kit P/N: 16772
- Air valve seal kit P/N: 16771
- Optional tools: 28584 (Sleeve removal tool); 56198 (Bullet tool for installing piston rod thru rod seals)
- Notes: Units manufactured prior to Jan. 1975, use Boosting Section kit P/N 17990.
Additional Optional Modifications:
- C-5, 6 or 7: Air filter, regulator with gauge, and manual start/stop
- 29376: Three-way cycling spool
- 50341: Low permeability seals for CO2 gas service
- 53376: Air regulator, air pilot switch and relief valve downstream
- 82500: ATEX modification
To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.
Product Catalog: Air Amplifier Catalog
