Haskel 80508 Gas Booster System

Haskel 80508 Gas Booster System

Features & Benefits:

• Plumbed for inert gases in single arrangements
• Supplied with a range of controls: air controls, air pilot switches (optional) for automated stop/start control, relief device, pressure isolation and vent valves
• All components are mounted and plumbed in an open stainless steel frame with a sloped front panel
• Safety relief devices are standard on all gas booster systems for maximum operational safety
• Allows 90 to 95% use of cylinder gas to maintain process pressure when cylinder pressure drops
• Can charge a receiver to even higher pressure level, thus storing a volume of gas for rapid release

Applications:

• Gas accumulator charging
• Pressure & leak testing various pressure containing components
• Pressurization of gas cylinders
• Gas transfer, boosting or mixing

Standard System Components:

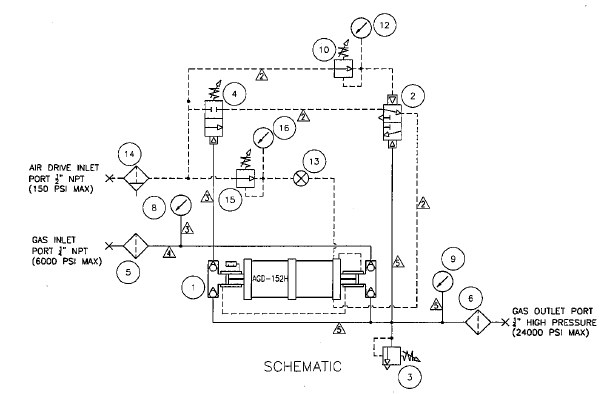

1. Air-driven gas booster with external pilot modification to enable use of external air pilot switches to automatically start and stop the booster.
2. Adjustable remote-set outlet air pilot switch used to stop the booster when the outlet pressure reaches the adjusted maximum set point.
3. Adjustable Haskel relief valve used to protect the booster and other components from over pressurization, piped to a common vent connection.
4. Adjustable inlet air pilot switch used to stop booster when the gas supply pressure falls below the adjusted minimum set point.
5. Inlet gas filter, 5-micron rated, used to stop any ingested contamination from entering the booster (e.g. while changing out gas bottles).
6. Outlet gas filter, 5-micron rated, used to stop any ingested contamination from exiting the booster.
7. Roll bar frame with sloping operator panel into which the booster and controls are mounted. Frames are brushed 316 stainless steel.
8. Inlet pressure gauge, 0-6000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
9. Outlet pressure gauge, 0-30000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
10. Adjustable remote-set air pilot regulator used to change the set point for the remote set outlet air pilot switch.
11. Nameplate (not shown).
12. 25mm air pressure gauge, 0-160 psi, panel mounted, used to indicate the adjustable remote set regulator adjusted pressure.
13. Manual speed control valve, panel mounted, used to adjust the cycling speed at which the booster operates.
14. Air filter in-line with 40-micron filtration to maintain air drive quality.
15. Adjustable air regulator used to set the air drive pressure, adjustable between 0-150 psi.
16. 25mm air pressure gauge, 0-160 psi, used to indicate the air drive pressure.

Technical Data:

• Description: AGD-152 Gas Booster System
• Drive Size: 5.25″
• Stage 1 Ratio: 152:1
• Stage 2 Ratio: N/A
• Min GAS supply pressure: 250 psi
• Max GAS supply pressure: 25,000 psi
• Max rated GAS outlet pressure: 25,000 psi
• Static outlet stall pressure formula: 150 Pa + Ps (Pa = air drive pressure; Ps = gas supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi
• Inter-stage relief valve set pressure: N/A

Sample Performance Characteristics:

• Boost 10.7 SCFM Gas from 3,000 psi to 12,000 psi while using 52 SCFM Air @ 90 psig supply pressure
• Boost 12.1 SCFM Gas from 5,000 psi to 16,000 psi while using 40 SCFM Air @ 90 psig supply pressure
• Boost 6.6 SCFM Gas from 7,000 psi to 20,000 psi while using 25 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Displacement / cycle: 2.4 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: 1/4″ FNPT inlet; 1/4″ HP outlet
• AIR drive inlet port: 1/2″ FNPT

Haskel 80508 Gas Booster System Repair kit information:

• Gas section seal kit P/N: 55031-75 (2 req’d)
• Air drive section seal kit P/N: 51545-3
• Air valve seal kit P/N: 17329
• Check valves seal kit P/N: 17325 (2 req’d)
• Distance piece kit P/N: N/A
• Optional tools: 28584 (Sleeve Removal Tool); 16675 (Wrench for Gas Booster check valve seats); 17245 (Wrench for Gas Booster piston nut)
• Notes: 55031-75 Gas Section kit includes piston seals; 17325 Check Valve Seal Kit includes check valve seals.

To add any modifications to this booster system or for assistance in selecting the right booster system for your application, please contact our Sales Department.
