Haskel 80517 Gas Booster System
Features & Benefits:
- Plumbed for inert gases in single arrangements
- Supplied with a range of controls: air controls, air pilot switches (optional) for automated stop/start control, relief device, pressure isolation and vent valves
- All components are mounted and plumbed in an open stainless steel frame with a sloped front panel
- Safety relief devices are standard on all gas booster systems for maximum operational safety
- Allows 90 to 95% use of cylinder gas to maintain process pressure when cylinder pressure drops
- Can charge a receiver to even higher pressure level, thus storing a volume of gas for rapid release
Applications:
- Gas accumulator charging
- Pressure & leak testing various pressure containing components
- Pressurization of gas cylinders
- Gas transfer, boosting or mixing

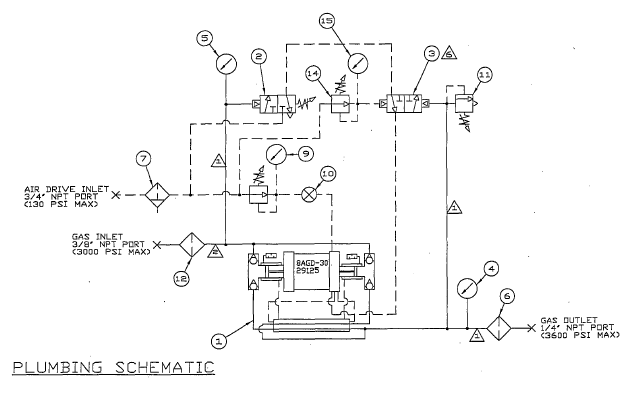

Standard System Components:
- Air-driven gas booster with external pilot modification to enable use of external air pilot switches to automatically start and stop the booster.
- Adjustable inlet air pilot switch used to stop booster when the gas supply pressure falls below the adjusted minimum set point.
- Adjustable remote-set outlet air pilot switch used to stop the booster when the outlet pressure reaches the adjusted maximum set point.
- Outlet pressure gauge, 0-6000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
- Inlet pressure gauge, 0-3000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
- Outlet gas filter, 5-micron rated, used to stop any contamination from exiting the booster.
- Air filter in-line with 40-micron filtration to maintain air drive quality.
- Adjustable air regulator used to set the air drive pressure, adjustable between 0-150 psi.
- 25mm air pressure gauge, 0-160 psi, used to indicate the air drive pressure.
- Manual speed control valve, panel mounted, used to adjust the cycling speed at which the booster operates.
- Adjustable Haskel relief valve used to protect the booster and other components from over pressurization, piped to a common vent connection.
- Inlet gas filter, 5-micron rated, used to stop any ingested contamination from entering the booster (e.g. while changing out gas bottles).
- Roll bar frame with sloping operator panel into which the booster and controls are mounted. Frames are brushed 316 stainless steel.
- Adjustable remote-set air pilot regulator used to change the set point for the remote set outlet air pilot switch.
- 25mm air pressure gauge, 0-160 psi, panel mounted, used to indicate the adjustable remote set regulator adjusted pressure.
Technical Data:
- Description: 8AGD-30 Gas Booster System
- Drive Size: 8″
- Stage 1 Ratio: 30:1
- Stage 2 Ratio: N/A
- Min GAS supply pressure: 50 psi
- Max GAS supply pressure: 5000 psi
- Max rated GAS outlet pressure: 5000 psi
- Static outlet stall pressure formula: 30 Pa + Ps (Pa = air drive pressure; Ps = gas supply pressure)
- Min AIR drive pressure: 20 psi
- Max AIR drive pressure: 130 psi
- Inter-stage relief valve set pressure: N/A
Sample Performance Characteristics:
- Boost 18 SCFM Gas from 600 psi to 1800 psi while using 65 SCFM Air @ 90 psig supply pressure
- Boost 36 SCFM Gas from 1200 psi to 2800 psi while using 75 SCFM Air @ 90 psig supply pressure
- Boost 52 SCFM Gas from 1800 psi to 3500 psi while using 75 SCFM Air @ 90 psig supply pressure
Physical Characteristics:
- Displacement / cycle: 12.4 cu. in.
- Max cycles: 50/min.
- GAS inlet/outlet connections: 3/8″ FNPT inlet; 1/4″ FNPT outlet
- AIR drive inlet port: 3/4″ FNPT
Haskel 80517 Gas Booster System Repair kit information:
- Gas section seal kit P/N: 52603 (2 req’d)
- Air drive section seal kit P/N: 50168
- Air valve seal kit P/N: 50881
- Check valves seal kit P/N: N/A
- Distance piece kit P/N: N/A
- Optional tools: 28584 (Sleeve Removal Tool); 17246 (Wrench for piston nut)
- Notes: 52603 kit includes piston & check valve seals (2 required).
To add any modifications to this booster system or for assistance in selecting the right booster system for your application, please contact our Sales Department.
