Haskel 80529 Oxygen Booster System

Haskel 80529 Oxygen Booster System

NOTE: this system uses a version of the model AGD-62 Gas Booster modified for OXYGEN service.

Features & Benefits:

• Plumbed for inert gases in single arrangements
• Supplied with a range of controls: air controls, air pilot switches (optional) for automated stop/start control, relief device, pressure isolation and vent valves
• All components are mounted and plumbed in an open stainless steel frame with a sloped front panel
• Safety relief devices are standard on all gas booster systems for maximum operational safety
• Allows 90 to 95% use of cylinder gas to maintain process pressure when cylinder pressure drops
• Can charge a receiver to even higher pressure level, thus storing a volume of gas for rapid release

Applications:

• Gas accumulator charging
• Pressure & leak testing various pressure containing components
• Pressurization of gas cylinders
• Gas transfer, boosting or mixing

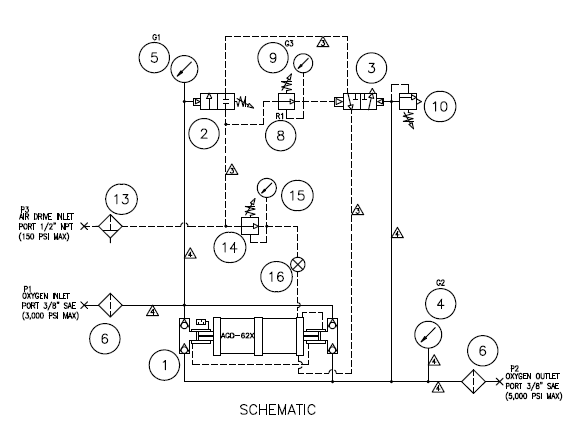

Standard System Components:

1. Air-driven gas booster with external pilot modification to enable use of external air pilot switches to automatically start and stop the booster.
2. Adjustable inlet air pilot switch used to stop booster when the gas supply pressure falls below the adjusted minimum set point.
3. Adjustable remote-set outlet air pilot switch used to stop the booster when the outlet pressure reaches the adjusted maximum set point.
4. Outlet pressure gauge, 0-6000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
5. Inlet pressure gauge, 0-3000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
6. Inlet & outlet gas filters, 5-micron rated, used to stop any ingested contamination from entering or exiting the booster (e.g. while changing out gas bottles).
7. Roll bar frame with sloping operator panel into which the booster and controls are mounted. Frames are brushed 316 stainless steel.
8. Adjustable remote-set air pilot regulator used to change the set point for the remote set outlet air pilot switch.
9. 25mm air pressure gauge, 0-160 psi, panel mounted, used to indicate the adjustable remote set regulator adjusted pressure.
10. Adjustable Haskel relief valve used to protect the booster and other components from over pressurization, piped to a common vent connection.
11. Remote-set nameplate (not shown).
12. Oxygen nameplate (not shown).
13. Air filter in-line with 40-micron filtration to maintain air drive quality.
14. Adjustable air regulator used to set the air drive pressure, adjustable between 0-150 psi.
15. 25mm air pressure gauge, 0-160 psi, used to indicate the air drive pressure.
16. Manual speed control valve, panel mounted, used to adjust the cycling speed at which the booster operates.

Technical Data:

• Description: 27961 Oxygen Booster System (type AGD-62 booster)

• Drive Size: 5.25″
• Stage 1 Ratio: 62:1
• Stage 2 Ratio: N/A
• Min GAS supply pressure: 200 psi
• Max GAS supply pressure: 5000 psi
• Max rated GAS outlet pressure: 9000 psi
• Static outlet stall pressure formula: 60 Pa + Ps (Pa = air drive pressure; Ps = gas supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi
• Inter-stage relief valve set pressure: N/A

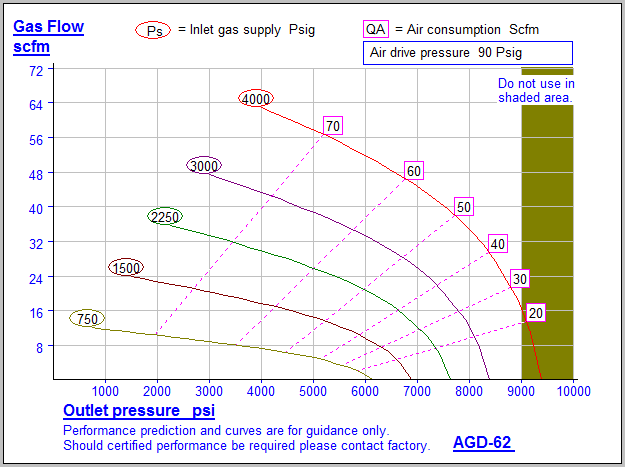

Sample Performance Characteristics:

• Boost 8 SCFM Gas from 1000 psi to 5000 psi while using 45 SCFM Air @ 90 psig supply pressure
• Boost 11 SCFM Gas from 2500 psi to 7500 psi while using 25 SCFM Air @ 90 psig supply pressure
• Boost 23.6 SCFM Gas from 3250 psi to 7500 psi while using 41 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Displacement / cycle: 6.2 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: 3/8″ SAE
• AIR drive inlet port: 1/2″ FNPT

Haskel 80529 Oxygen Booster System Repair kit information:

• Gas section seal kit P/N: 51548-30 (2 req’d)
• Air drive section seal kit P/N: 51545-3
• Air valve seal kit P/N: 17329
• Check valves seal kit P/N: 17677 (2 req’d)
• Distance piece kit P/N: N/A
• Optional tools: 28584 (Sleeve Removal Tool); 16675 (Wrench for Gas Booster check valve seats); 17246 (Wrench for Gas Booster piston nut)
• Notes: 51548-30 Gas Section kit includes piston seals; 17677 Check Valve Seal Kit includes check valve seals.

To add any modifications to this booster system or for assistance in selecting the right booster system for your application, please contact our Sales Department.
