Haskel 82880 Oxygen Booster System
NOTE: this system uses a version of the model 4AG-25 Gas Booster modified for OXYGEN service.
Features & Benefits:
- Plumbed for inert gases in single arrangements
- Supplied with a range of controls: air controls, air pilot switches (optional) for automated stop/start control, relief device, pressure isolation and vent valves
- All components are mounted and plumbed in an open stainless steel frame with a sloped front panel
- Safety relief devices are standard on all gas booster systems for maximum operational safety
- Allows 90 to 95% use of cylinder gas to maintain process pressure when cylinder pressure drops
- Can charge a receiver to even higher pressure level, thus storing a volume of gas for rapid release
Applications:
- Gas accumulator charging
- Pressure & leak testing various pressure containing components
- Pressurization of gas cylinders
- Gas transfer, boosting or mixing

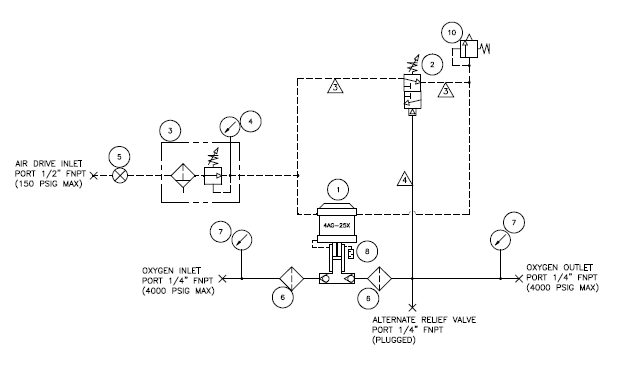

Standard System Components:
- Air-driven gas booster with external pilot modification to enable use of external air pilot switches to automatically start and stop the booster.
- Adjustable outlet air pilot switch used to stop the booster when the outlet pressure reaches the adjusted maximum set point.
- Combined air inlet filter/regulator, with integral pressure gauge and on/off control valve.
- Air filter in-line with 40-micron filtration to maintain air drive quality.
- Adjustable air regulator used to set the air drive pressure, adjustable between 0-150 psi.
- 25mm air pressure gauge, 0-160 psi, used to indicate the air drive pressure.
- Manual speed control valve, panel mounted, used to adjust the cycling speed at which the booster operates.
- Inlet & outlet gas filters, 5-micron rated, used to stop any ingested contamination from entering or exiting the booster (e.g. while changing out gas bottles).
- Inlet & outlet pressure gauges, 0-5000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
- Exhaust muffler.
- Mounting bracket (not shown).
- Adjustable Haskel relief valve used to protect the booster and other components from over pressurization, piped to a common vent connection.
Technical Data:
- Description: 86921 Oxygen Booster System (type 4AG-25 booster)
- Drive Size: 4″
- Stage 1 Ratio: 25:1
- Stage 2 Ratio: N/A
- Min GAS supply pressure: 25 psi
- Max GAS supply pressure: 4500 psi
- Max rated GAS outlet pressure: 4500 psi
- Static outlet stall pressure formula: 25 Pa (Pa = air drive pressure; Ps = gas supply pressure)
- Min AIR drive pressure: 20 psi
- Max AIR drive pressure: 150 psig
- Inter-stage relief valve set pressure: N/A
Sample Performance Characteristics:
- Boost 0.2 SCFM Gas from 500 psi to 2250 psi while using 2 SCFM Air @ 90 psig supply pressure
- Boost 0.5 SCFM Gas from 1000 psi to 2250 psi while using 2 SCFM Air @ 90 psig supply pressure
- Boost 0.6 SCFM Gas from 1500 psi to 2250 psi while using 2 SCFM Air @ 90 psig supply pressure
Physical Characteristics:
- Displacement / cycle: 1.23 cu. in.
- Max cycles: 60/min.
- GAS inlet/outlet connections: 1/4″ FNPT
- AIR drive inlet port: 1/2″ FNPT
Haskel 82880 Oxygen Booster System Repair kit information:
- Gas section seal kit P/N: 86796
- Air drive section seal kit P/N: 86797
- Air valve seal kit P/N: N/A
- Check valves seal kit P/N: 86798
- Distance piece kit P/N: N/A
- Optional tools: 28584 (Sleeve removal tool)
- Notes: P/N 86796 kit includes piston seals only. P/N 86798 kit includes check valve seals only.
To add any modifications to this booster system or for assistance in selecting the right booster system for your application, please contact our Sales Department.
