Haskel AAD-2-C Air Amplifier
THIS AIR AMPLIFIER INCLUDES THE OPTIONAL “C17” AIR CONTROLS PACKAGE (FILTER/REGULATOR, MANUAL START/STOP SHUTOFF VALVE, PRESSURE GAUGE).
Features & Benefits:
- Long seal life and easy maintenance
- No heat, flame or spark risk
- Wide range of models, controls and options
- No air line lubrication required, eliminating oily exhaust
- Infinitely variable outlet pressure and flow capability
- Wide range of standard and custom systems
- Control of maximum pressure by means of inexpensive air drive pressure regulators
Technical Data:
- Air Drive Size: 5.75 in
- 1st Stage Ratio: 2:1
- 2nd Stage Ratio: N/A
- Min Gas supply pressure: 25 psi
- Max Gas supply pressure: 300 psi
- Max rated outlet pressure: 300 psi
- Static outlet stall pressure formula: Pa + Ps (Pa = air drive pressure, Ps = GAS supply pressure)
- Min AIR drive pressure: 40 psi
- Max AIR drive pressure: 150 psi

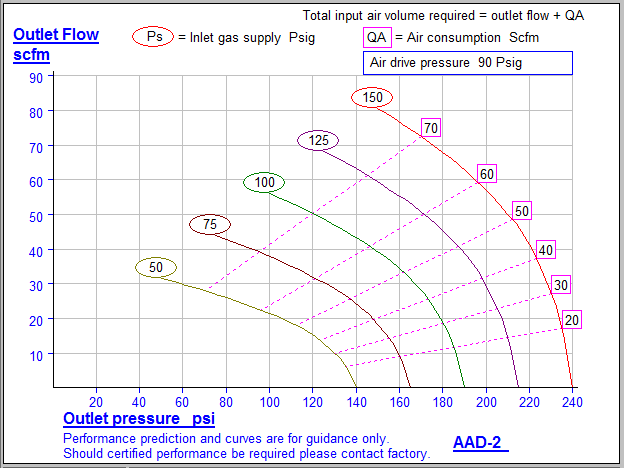

Physical Characteristics:
- Unit weight: 38 lbs.
- Displacement / cycle: 201 cu. in.
- Max cycles: 80/min.
- GAS inlet/outlet connections: 3/8″ FNPT
- AIR drive inlet port: 1/2″ FNPT
Haskel AAD-2-C Air Amplifier Repair kit information:
- Boosting section seal kit P/N: N/A
- Air drive section seal kit P/N: 27369
- Air valve seal kit P/N: 16771
- Optional tools: 28584 (Sleeve removal tool)
- Notes: None.
Additional Optional Modifications:
- 29376: Three-way cycling spool
- 50341: Low permeability seals for CO2 gas service
- 51050: Extreme service cycling modification
- 53375: Air regulator downstream, 125 psi max output
- 53375-1: Air regulator downstream, 200 psi max output
- 82500: ATEX modification
To add any modifications to this air amplifier or for assistance in selecting the right air amplifier for your application, please contact our Sales Department for assistance.
Product Catalog: Air Amplifier Catalog
Installation Documents: SKIS-001 SKIS-002 SKIS-014
