Haskel 80509 Gas Booster System

Haskel 80509 Gas Booster System

Features & Benefits:

• Plumbed for inert gases in single arrangements
• Supplied with a range of controls: air controls, air pilot switches (optional) for automated stop/start control, relief device, pressure isolation and vent valves
• All components are mounted and plumbed in an open stainless steel frame with a sloped front panel
• Safety relief devices are standard on all gas booster systems for maximum operational safety
• Allows 90 to 95% use of cylinder gas to maintain process pressure when cylinder pressure drops
• Can charge a receiver to even higher pressure level, thus storing a volume of gas for rapid release

Applications:

• Gas accumulator charging
• Pressure & leak testing various pressure containing components
• Pressurization of gas cylinders
• Gas transfer, boosting or mixing

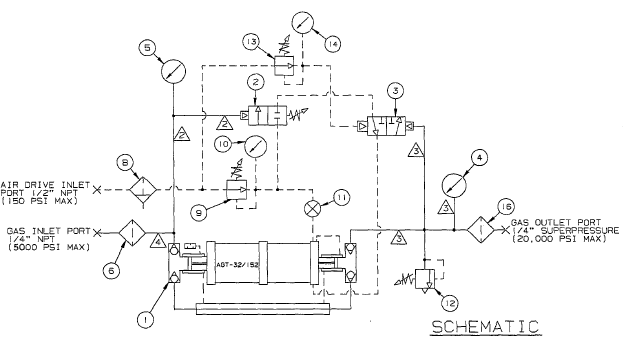

Standard System Components:

1. Air-driven gas booster with external pilot modification to enable use of external air pilot switches to automatically start and stop the booster.
2. Adjustable inlet air pilot switch used to stop booster when the gas supply pressure falls below the adjusted minimum set point.
3. Adjustable remote-set outlet air pilot switch used to stop the booster when the outlet pressure reaches the adjusted maximum set point.
4. Outlet pressure gauge, 0-20000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
5. Inlet pressure gauge, 0-5000 psi, safe case design, 100mm diameter, panel mounted with bar/psi dual scale. Accuracy +/- 1% FSD.
6. Inlet gas filter, 5-micron rated, used to stop any ingested contamination from entering the booster (e.g. while changing out gas bottles).
7. Roll bar frame with sloping operator panel into which the booster and controls are mounted. Frames are brushed 316 stainless steel.
8. Air filter in-line with 40-micron filtration to maintain air drive quality.
9. Adjustable air regulator used to set the air drive pressure, adjustable between 0-150 psi.
10. 25mm air pressure gauge, 0-160 psi, used to indicate the air drive pressure.
11. Manual speed control valve, panel mounted, used to adjust the cycling speed at which the booster operates.
12. Adjustable Haskel relief valve used to protect the booster and other components from over pressurization, piped to a common vent connection.
13. Adjustable remote-set air pilot regulator used to change the set point for the remote set outlet air pilot switch.
14. 25mm air pressure gauge, 0-160 psi, panel mounted, used to indicate the adjustable remote set regulator adjusted pressure.
15. Nameplate (not shown).
16. Outlet gas filter, 5-micron rated, used to stop any contamination from exiting the booster.

Technical Data:

• Description: AGT-32/152 Gas Booster System
• Drive Size: 5.25″
• Stage 1 Ratio: 32:1
• Stage 2 Ratio: 152:1
• Min GAS supply pressure: 100 psi
• Max GAS supply pressure: 7 Pa to 5000 psi
• Max rated GAS outlet pressure: 15000 psi
• Static outlet stall pressure formula: 150 Pa + 5 Ps (Pa = air drive pressure; Ps = gas supply pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psi
• Inter-stage relief valve set pressure: N/R

Sample Performance Characteristics:

• Boost 0.46 SCFM Gas from 50 psi to 3000 psi while using 55 SCFM Air @ 90 psig supply pressure
• Boost 1 SCFM Gas from 150 psi to 10000 psi while using 50 SCFM Air @ 90 psig supply pressure
• Boost 2.1 SCFM Gas from 250 psi to 10000 psi while using 52 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Displacement / cycle: 6.2 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: 1/4″ FNPT inlet; 1/4″ HP outlet
• AIR drive inlet port: 1/2″ FNPT

Haskel 80509 Gas Booster System Repair kit information:

• Gas section seal kit P/N: 51544-15 & 55031-75
• Air drive section seal kit P/N: 51545-3
• Air valve seal kit P/N: 17329
• Check valves seal kit P/N: 17325 (2 req’d)
• Distance piece kit P/N: N/A
• Optional tools: 28584 (Sleeve removal tool); 16675 (Wrench for gas booster check valve seats); 17245 (Wrench for gas booster piston nut); 17246 (Wrench for gas booster piston nut)
• Notes: P/N 51544-15 & 55031-75 kits include piston seals only. P/N 17325 kit includes check valve seals only.
