Haskel 86981 Hydrogen Booster

Haskel 86981 Hydrogen Gas Booster

NOTE: this is a version of the model AG-152 Gas Booster modified for HYDROGEN service.

Features & Benefits:

• Reliable, easy to maintain, compact and robust
• No heat, flame or spark risk
• Infinitely variable cycling speed and output
• Pneumatic driven units do not require electrical connections
• Easy to apply automatic controls
• No limit or adverse affect to continuous stop/start applications
• Seal systems designed for long working life
• No air line lubricator required
• Hydrocarbon free – separation between air and gas sections
• Built-in cooling (most models)
• Suitable for most gases
• Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat

Technical Data:

• Ratio: 152:1
• Min GAS supply pressure: 250 psi
• Max GAS supply pressure: 20,000 psi
• Max rated GAS outlet pressure: 20,000 psi
• Static outlet stall pressure formula: 150 Pa (Pa = airdrive pressure)
• Min AIR drive pressure: 20 psi
• Max AIR drive pressure: 150 psig

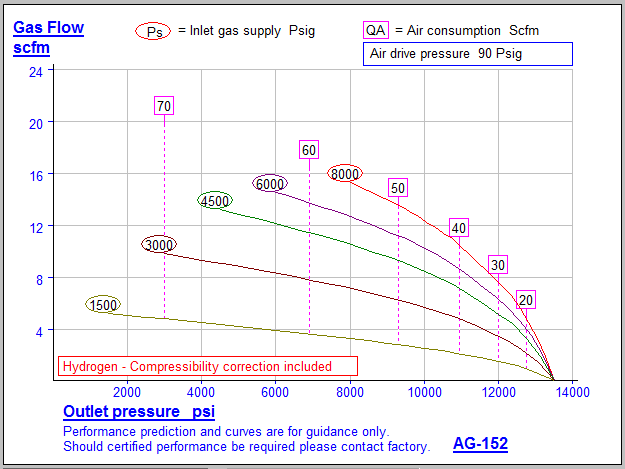

Sample Performance Characteristics:

• Boost 1.3 SCFM Gas from 2,000 psi to 13,000 psi while using 20 SCFM Air @ 90 psig supply pressure
• Boost 2.3 SCFM Gas from 3,500 psi to 13,000 psi while using 20 SCFM Air @ 90 psig supply pressure
• Boost 3 SCFM Gas from 5,000 psi to 13,000 psi while using 20 SCFM Air @ 90 psig supply pressure
• Boost 3.6 SCFM Gas from 6,500 psi to 13,000 psi while using 20 SCFM Air @ 90 psig supply pressure

Physical Characteristics:

• Unit weight: 27 lbs.
• Displacement / cycle: 1.2 cu. in.
• Max cycles: 60/min.
• GAS inlet/outlet connections: Interchangeable 3/8″ SAE or 1/4″ HP
• AIR drive inlet port: 1/2″ FNPT

Haskel 86981 Hydrogen Gas Booster Repair kit information:

• Gas section seal kit P/N: 87448, 87122
• Air drive section seal kit P/N: 51545-2
• Air valve seal kit P/N: 17329
• Check valves seal kit P/N: 17325
• Distance piece kit P/N: N/A
• Optional tools: 28584 (Sleeve removal tool); 16675 (Wrench for gas booster check valve seats); 17245 (Wrench for gas booster piston nut)
• Notes: P/N 87448 is Gas Section Seal Kit; P/N 87122 is Gas Piston Seal Kit.

Optional Modifications:

• C or C-8: Air filter, regulator with gauge, and manual start/stop
• 17860: Electrical stroke counter
• 25721: Mechanical stroke counter
• 28881: External pilot modification
• 29376: Three-way cycling spool
• 29702: Single-stroke modification
• 50341: Low permeability seals for CO2 gas service
• 51050: Extreme service cycling modification
• 54827: Level II cleaning and certification of gas sections
• 56611: Vent purge with 15 psi relief (single end models)
• 56611-2: Vent purge with 15 psi relief
• 57875: Panel with regulator for mounting remote APS
• 59888: Cycle timer
• 80862: Viton air drive seals
• 82500: ATEX modification
• 86337: Extended life air drive seals

To add any modifications to this Gas Booster or for assistance in selecting the right gas booster for your application, please contact our Sales Department for assistance.
