Haskel AG-303 Gas Booster
Features & Benefits:
- Reliable, easy to maintain, compact and robust
- No heat, flame or spark risk
- Infinitely variable cycling speed and output
- Pneumatic driven units do not require electrical connections
- Easy to apply automatic controls
- No limit or adverse affect to continuous stop/start applications
- Seal systems designed for long working life
- No air line lubricator required
- Hydrocarbon free – separation between air and gas sections
- Built-in cooling (most models)
- Suitable for most gases
- Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat
Technical Data:
- Ratio: 303:1
- Min GAS supply pressure: 500 psi
- Max GAS supply pressure: 39,000 psi
- Max rated GAS outlet pressure: 39,000 psi
- Static outlet stall pressure formula: 300 Pa (Pa = airdrive pressure)
- Min AIR drive pressure: 20 psi
- Max AIR drive pressure: 130 psig

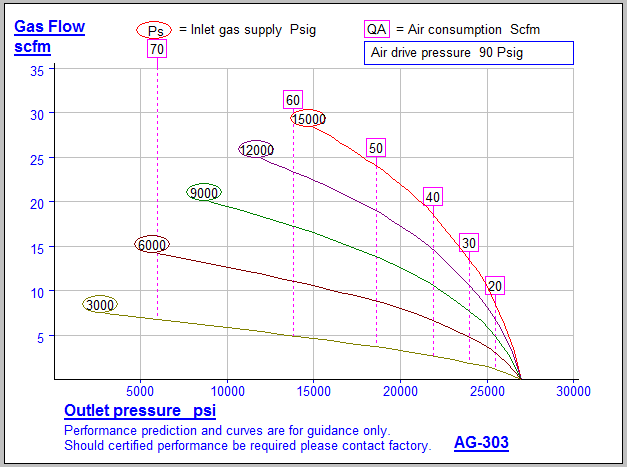

Sample Performance Characteristics:
- Boost 2.5 SCFM Gas from 5,000 psi to 24,000 psi while using 40 SCFM Air @ 90 psig supply pressure
- Boost 3.5 SCFM Gas from 7,500 psi to 24,000 psi while using 40 SCFM Air @ 90 psig supply pressure
- Boost 5 SCFM Gas from 10,000 psi to 24,000 psi while using 40 SCFM Air @ 90 psig supply pressure
- Boost 6 SCFM Gas from 12,500 psi to 24,000 psi while using 40 SCFM Air @ 90 psig supply pressure
Physical Characteristics:
- Unit weight: 44 lbs.
- Displacement / cycle: 0.89 cu. in.
- Max cycles: 60/min.
- GAS inlet/outlet connections: 1/4″ HP
- AIR drive inlet port: 1/2″ FNPT
Haskel AG-303 Gas Booster Repair kit information:
- Gas section seal kit P/N: 55047
- Air drive section seal kit P/N: 51545-4
- Air valve seal kit P/N: 16771
- Check valves seal kit P/N: N/A
- Distance piece kit P/N: 17327
- Optional tools: 28584 (Sleeve removal tool)
- Notes: P/N 55047 kit includes piston seals only.
Optional Modifications:
- C or C-8: Air filter, regulator with gauge, and manual start/stop
- 17860: Electrical stroke counter
- 25721: Mechanical stroke counter
- 29376: Three-way cycling spool
- 29702: Single-stroke modification
- 50341: Low permeability seals for CO2 gas service
- 51050: Extreme service cycling modification
- 54827: Level II cleaning and certification of gas sections
- 56611: Vent purge with 15 psi relief (single end models)
- 56611-2: Vent purge with 15 psi relief
- 57875: Panel with regulator for mounting remote APS
- 59888: Cycle timer
- 80862: Viton air drive seals
- 82500: ATEX modification
- 86337: Extended life air drive seals
To add any modifications to this Gas Booster or for assistance in selecting the right gas booster for your application, please contact our Sales Department for assistance.
