Haskel 86980 Hydrogen Gas Booster
NOTE: this is a version of the model AG-75 Gas Booster modified for HYDROGEN service.
Features & Benefits:
- Reliable, easy to maintain, compact and robust
- No heat, flame or spark risk
- Infinitely variable cycling speed and output
- Pneumatic driven units do not require electrical connections
- Easy to apply automatic controls
- No limit or adverse affect to continuous stop/start applications
- Seal systems designed for long working life
- No air line lubricator required
- Hydrocarbon free – separation between air and gas sections
- Built-in cooling (most models)
- Suitable for most gases
- Ability to stall at any predetermined pressure and hold the fixed pressure without consuming power or generating heat
Technical Data:
- Ratio: 75:1
- Min GAS supply pressure: 250 psi
- Max GAS supply pressure: 11,250 psi
- Max rated GAS outlet pressure: 11,250 psi
- Static outlet stall pressure formula: 75 Pa (Pa = airdrive pressure)
- Min AIR drive pressure: 20 psi
- Max AIR drive pressure: 150 psig

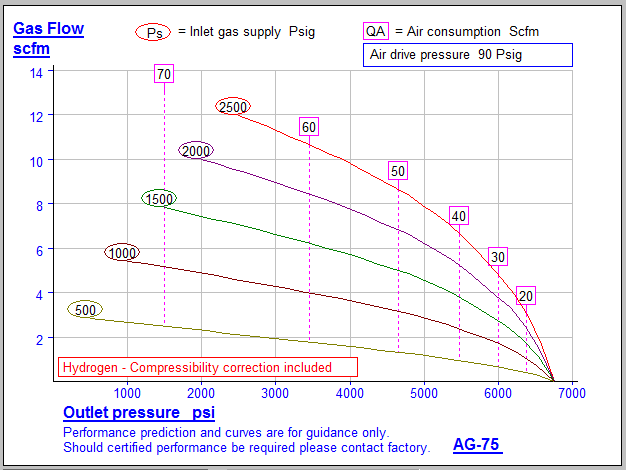

Sample Performance Characteristics:
- Boost 0.8 SCFM Gas from 500 psi to 6000 psi while using 30 SCFM Air @ 90 psig supply pressure
- Boost 1.8 SCFM Gas from 1000 psi to 6000 psi while using 30 SCFM Air @ 90 psig supply pressure
- Boost 2.9 SCFM Gas from 1500 psi to 6000 psi while using 30 SCFM Air @ 90 psig supply pressure
- Boost 3.8 SCFM Gas from 2000 psi to 6000 psi while using 30 SCFM Air @ 90 psig supply pressure
Physical Characteristics:
- Unit weight: 27 lbs.
- Displacement / cycle: 1.2 cu. in.
- Max cycles: 60/min.
- GAS inlet/outlet connections: Interchangeable 3/8″ SAE or 1/4″ HP
- AIR drive inlet port: 1/2″ FNPT
Haskel 86980 Hydrogen Gas Booster Repair kit information:
- Gas section seal kit P/N: 87448, 87122
- Air drive section seal kit P/N: 51545-1
- Air valve seal kit P/N: 17329
- Check valves seal kit P/N: 17325
- Distance piece kit P/N: N/A
- Optional tools: 28584 (Sleeve removal tool); 16675 (Wrench for gas booster check valve seats); 17245 (Wrench for gas booster piston nut)
- Notes: P/N 87448 is Gas Section Seal Kit; P/N 87122 is Gas Piston Seal Kit.
Optional Modifications:
- C or C-8: Air filter, regulator with gauge, and manual start/stop
- 17860: Electrical stroke counter
- 25721: Mechanical stroke counter
- 29376: Three-way cycling spool
- 29702: Single-stroke modification
- 50341: Low permeability seals for CO2 gas service
- 51050: Extreme service cycling modification
- 54827: Level II cleaning and certification of gas sections
- 56611: Vent purge with 15 psi relief (single end models)
- 56611-2: Vent purge with 15 psi relief
- 57875: Panel with regulator for mounting remote APS
- 59888: Cycle timer
- 80862: Viton air drive seals
- 82500: ATEX modification
- 86337: Extended life air drive seals
